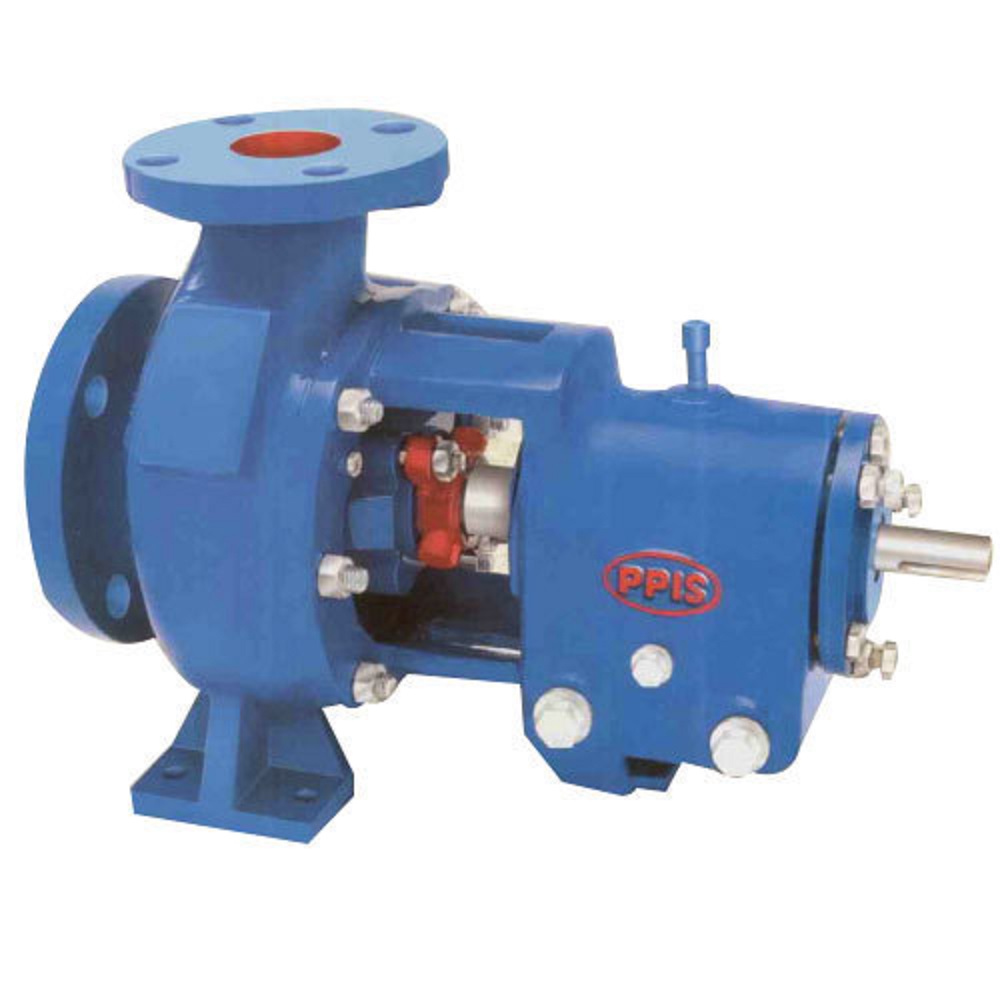

End Suction Back Pullout Pump

Features

• Self vented, foot mounted, center suction volute casing & single stage, closed / semi-open dynamically balanced non-clog impeller ensure the unimpeded liquid flow
• Supporting feet are cast integral with the casing along with suction and discharge nozzles
• Flange drilling standards as per DIN 24255 / ISO 2858 or as per customer's requirement
• Designed for 16 bar working pressure with optional casing for a working pressure of up to 20 bar
• Robust and solid construction that guarantees long life even under high suction pressure conditions
• Heavy-duty, deep-grooved closed ball bearings with a minimum of 50,000/- hours operating life under normal conditions ensure no dirt intrusions.(Grease lubricated; oil lubrication available on request )
• Heavy-duty, stiff solid shaft design with low L 3/D 4 ratios ensures less than 0.05 mm shaft deflection at the seal face in all operating conditions which extends seal life
• Seal housing is constructed to accommodate different seal/gland designs, so as to meet heavy-duty requirements if any
• Excellent parts interchangeability reduces inventory levels for spare parts to a minimum
• Special design for high-temperature thermal fluids available on request
• Motor or engine driven sets
• Special monoblock versions are available on request.
