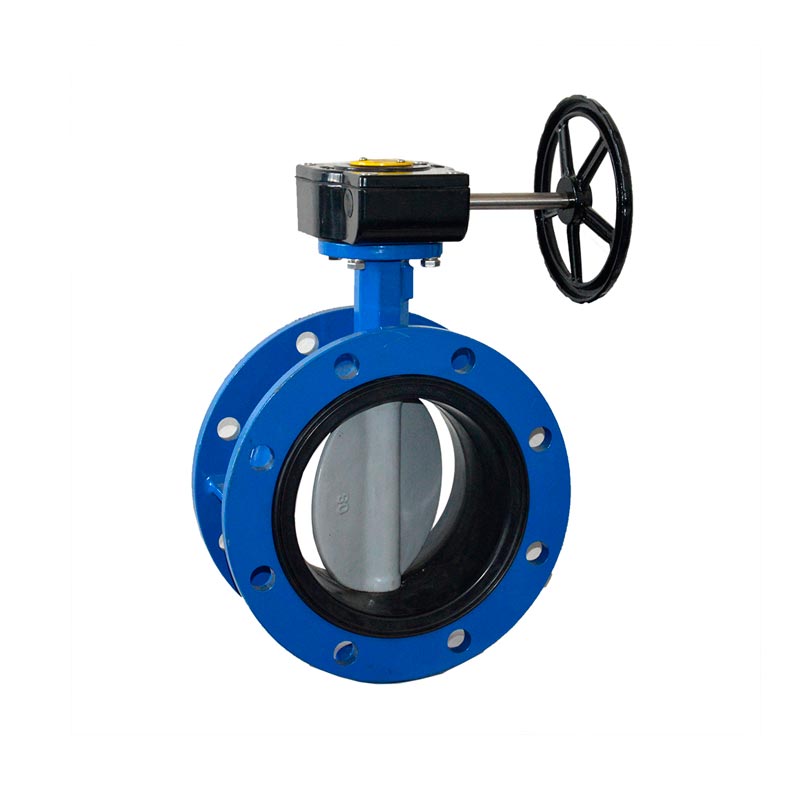

DOUBLE ECCENTRIC  FLANGED TYPE BUTTERFLY VALVE DIAMETER 150 - 2000 (mm)

An eccentric valve is available in the flanged-type body.

These valves incorporate a double eccentric disc design, which practically eliminates any seat wear.

The fully replaceable seat provided on the disc periphery is field replaceable and is capable of achieving bi-directional sealing.

The rubber seat seals against Chromium-Nickel Plasma deposit integrally welded with the body.

TECHNICAL FEATURES

• Valve Type: Double Eccentric Disc Design
• Body Type: Double Flanged
• Seat Type: High corrosion-resistant CrNi deposit
• on the body and a replaceable seat on the disc
• End Connection: Flanged
• Size Range: DN150-DN2000
• Pressure: PN10/PN16/PN25
• o Operating Temp: Upto 80 C
• Seat Leakage: Tight Shut-off
• Operation: Worm Gear/Pneumatic Actuator
• /Electric Actuator

SALIENT FEATURES

• Epoxy coated
• Long and short face to face length
• Long service life
• Wear-resistant
• Corrosion proof seat with plasma deposit
• Suitable for water application
